High Stability Polarization Maintaining Fiber Coupler 1 * 2 0.9 mm 1550 nm

Name: High Stability Polarization Maintaining Fiber Coupler 1 2 09 mm 1550 nm
Brand: Geehe or OEM
Price: 1 USD

Brand Name : Geehe or OEM

Model Number : Polarization Maintaining Fiber Coupler

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 10 PCS

Price : Price Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 300,000pcs per month

Delivery Time : 7-10 days

Packaging Details : Blister box and carton

Configuration : 1x2

Fiber Material : Single Mode G657 A1

Operating wavelength : 1550nm

Coupling Ratio : 5:95

Fiber Type : 0.9mm

Fiber Length : 1m

Input Connector : LC/UPC

Output Connector : LC/UPC

Contact Now

Polarization Maintaining Filter Coupler Single Mode 1*2 0.9mm 1550nm LC/UPC-LC/UPC

EX: PMC-P-12-55-50-1-09-LU-B

Applications

Long-haul Telecommunications

CATV

FTTH

Local Area Network

Key Features

Low excess loss

Various Coupling Ratio

Compact Size

High Stability and Reliability

Mini sizes

Specifications

Parameter	P					A
Operating wavelength (nm)	1480,1550nm
Insertion loss (Max.) (dB)	Split Ration					Silt Ration
	1:99	2:98	5:95	10:90	50:50	1:99	2:98	5:95	10:90	50:50
	21/0.8	18/0.8	14.2/0.9	11.2/1.1	3.6	22/1.0	18.5/1.0	14.8/1.1	11.8/1.3	4.0
Max. Uniformity	0.8
Tap Ratio	1%,2%,5%,10%,40%,50%
Mini. Extinction Ratio(dB)	20					18
Optical Return loss(dB)	≥50
Power Handling(mW)	500
Operating temperature (℃)	-10 ~ +75
Storage temperature (℃)	-40 ~ +85
Fiber Type	PM Panda Fiber
Package Dimensions(mm)	φ3×L35 OR φ3×L48

The above specification is without connector

Other specifications can be made on customer request

Ordering Information

PMC-

X-

X2-

XX-

X-

XX-

P:Premium

A:Grade A

On request

12:1X2

22:2X2

31:1310nm

49:1490nm

55:1550nm

98: 980nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable

30: 3mm cable

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C

Grade

Port number

Operation Wavelength

coupling Ratio

Fiber length

Fiber type

Connect Type

Dimension

EX: PMC-P-12-55-50-1-09-LU-B

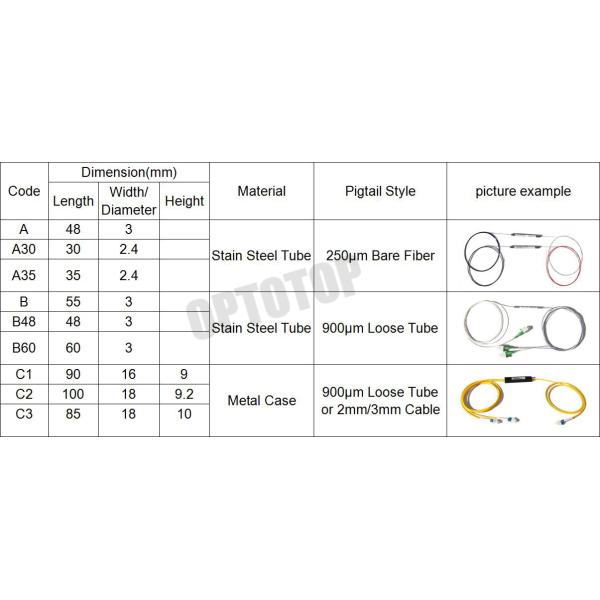

Dimensions

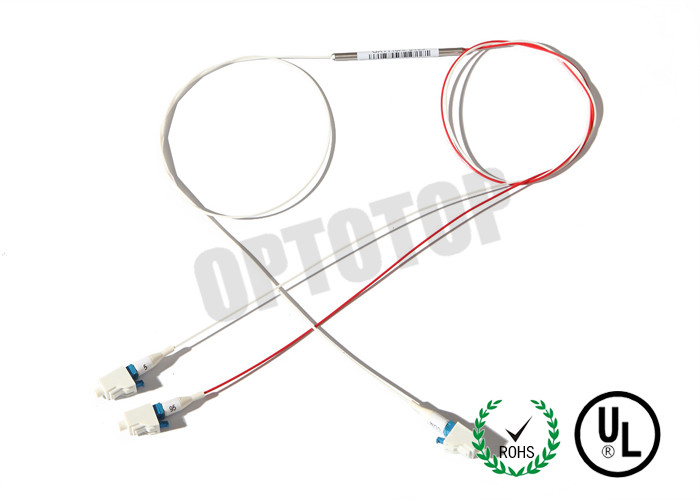

High Stability Polarization Maintaining Fiber Coupler 1 * 2 0.9 mm 1550 nm
